An Introduction to Evaporative Coolers

Jun 19, 2018

Evaporative coolers are a popular alternative to traditional refrigerant-based air conditioning units in regions with hot, dry climates. While they are not seen as frequently as traditional split systems and package units, adjusters should still make themselves familiar with this type of equipment, particularly if they handle claims in regions that are ideal for evaporative coolers.

What Is Evaporative Cooling?

Before we get into how evaporative coolers work, it is important to understand the principles behind evaporative cooling. The evaporative cooling process begins with the evaporation of water (or other liquid) into the surrounding air. When the liquid turns to a gas, it absorbs heat, thereby reducing the temperature of the surrounding air.

Evaporative Coolers - How the evaporative cooling process works



The concept of evaporative cooling has been around for thousands of years. The ancient Egyptians used this process to provide cooling by soaking fabric in water and hanging it across the door to the home. As the air passed through the fabric, it absorbed moisture and created a cool breeze in the space (How Stuff Works).

Get your copy of our Evaporative Cooler Claim Guide here

Evaporative Coolers - An inside view of an evaporative cooler

How Do Evaporative Coolers Work?

Evaporative coolers harness this process to provide cooling to a space. Residential properties typically utilize a direct evaporative cooler. In this type of system, a pump circulates water from a reservoir to saturate a cooling pad. A fan then pulls air from the outside through the wet pad, initiating the evaporation process. The cool, humid air is then distributed to the home.

There are three common types of direct residential evaporative coolers:

  • Portable Coolers – These are designed to cool a small living area. They do not require professional installation or ductwork. Some even come with wheels to make them easy to move from room to room.
  • Side Draft – These systems are installed so that the air blows from the side of the unit directly into the home. This type of evaporative cooler is installed either in the window or through the wall. These may require professional installation, but no ductwork. They will only be able to efficiently cool one room; however, they can provide cooling for a larger room or area than a portable cooler would.
  • Down Draft – These units are installed on the roof of a home and can provide cooling to the whole home through the use of a duct system. These are the most expensive to install and can be difficult to maintain.

Where Are Evaporative Coolers Effective?

To effectively use the evaporation process to create cooling, the air must be dry enough to absorb the moisture. Evaporative coolers are only consistently effective in areas where the relative humidity does not reach over 60%. Once the relative humidity reaches 60%, evaporative coolers can, at best, only lower the temperature by 10 degrees. Even in dry climates, when it does rain the humidity will rise. An evaporative cooler should not be used during these periods of high humidity.

Differences Between Evaporative Coolers and Traditional Air Conditioning Systems

Traditional air conditioning systems use a coil filled with refrigerant to transfer heat, provide cooling, and remove humidity from a conditioned space. This type of cooling system is a closed process, where the air from the room is cycled back through the cooling process. Allowing air to escape from the conditioned space will reduce the efficiency of the system.

How a downdraft evaporative cooler provides cooling to a home

Instead of using refrigerant, an evaporative cooler uses a pump to circulate water to the pads and a fan to pull air through the pads. This adds moisture to dry air and therefore requires the space to be ventilated so the moist air has a way out. Evaporative coolers do not always use ductwork to direct the airflow, but when they do, the ducts must be larger than traditional air conditioners to account for greater flow of air from the evaporative cooler.

Common Evaporative Cooler Issues

Evaporative coolers require frequent maintenance. The cooling pads need regular cleaning or replacement to avoid air quality issues and odors. This should be done as often as once per month when the evaporative cooler has been running constantly. Additionally, sediment and minerals can build up inside of the cooler. These need to be drained and cleaned at least once per season to keep the system working year after year. These tasks can become tedious, particularly when the system is mounted on the roof.

Growth from a pad of an evaporative cooler that was not maintained properly

The pads for this evaporative cooler had not been cleaned in so long that the build up has reached the pad’s guards

Evaporative Cooler Claim Considerations

The regions that are best for evaporative coolers tend to have a high propensity for hailstorms. Because evaporative coolers are often located on the roof, they are frequently included in a hail claim. Unlike condensing units, these systems do not have a coil that can be easily damaged by hail. Often, the unit shows no signs of damage from a hailstorm. However, large hailstones can dent the metal panels of the unit. While this does not generally affect the system’s operation, it still must be considered to sufficiently return the insured’s system to pre-loss condition. Luckily, these panels can typically be replaced as opposed to replacing the entire unit.

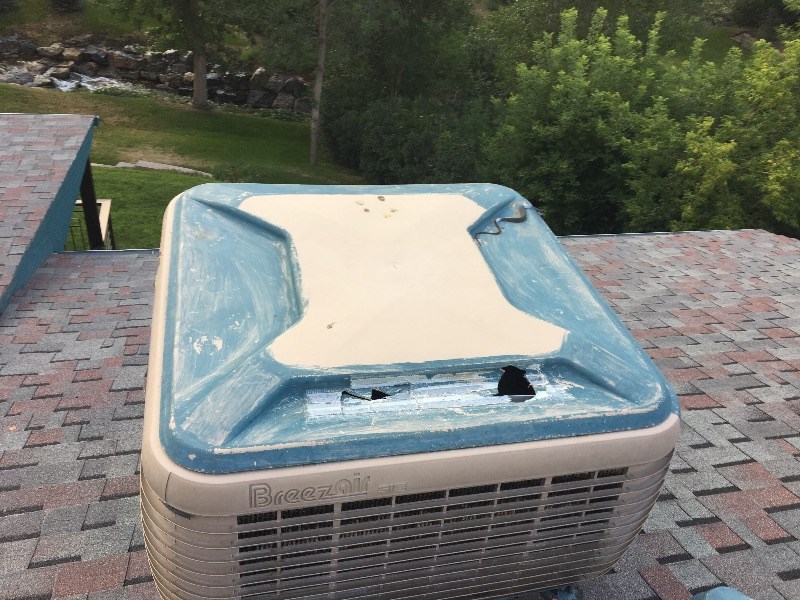

A hail damaged evaporative cooler

Hail broke through the top panel of this evaporative cooler, the top panels required replacement to return the insured to pre-loss condition

Additionally, compared to a standard HVAC system, an evaporative cooler has much fewer electrical components that could be damaged by an electrical event. Frequently, the evaporative cooler is activated by a simple variable-speed switch, therefore there are often no integrated circuit boards in the system. While the pump and electrical blower motor can still be damaged by a surge event, these occurrences are much less frequent than electrical damage to refrigerant-based systems.

While evaporative coolers are not as popular as the more traditional HVAC systems, adjusters (particularly those who handle claims in the western half of the country) should know what to look for when handling this type of unit on a claim. For more information on evaporative coolers, get your free adjuster guide here.
